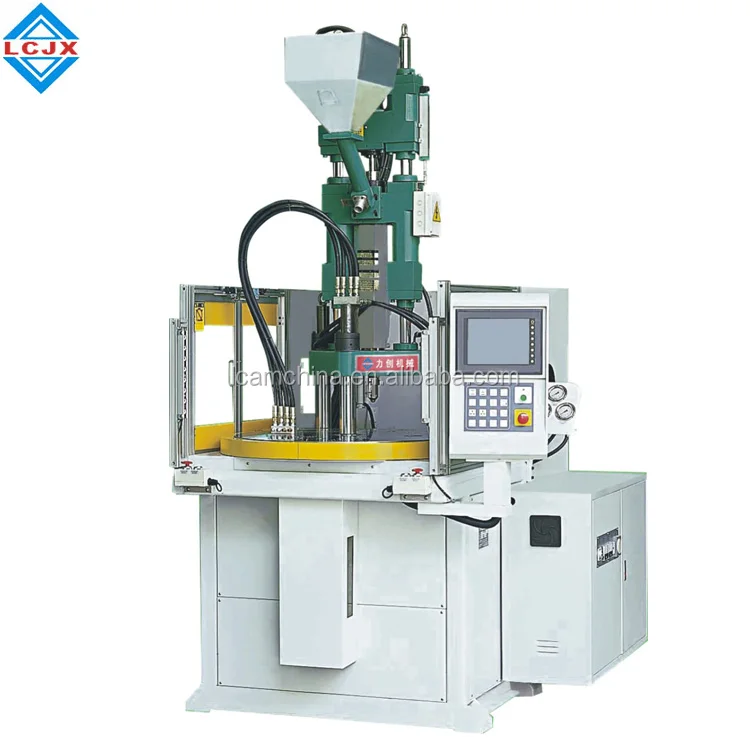

35 Ton Pvc Small Round Table Vertical Plastic Injection Molding Machine

FOB Reference Price:Get Latest Price
$13,000.00 - $16,500.00 / Units | 1 Unit/Units (Min. Order)
Clamping Force:
343(35)kN(tf)
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Distance between Tie Bars:
rotary table
Condition:
New
Type:
Preform Injection
Style:
Vertical
Brand Name:
Lichuang
Model Number:
V35R2
Place of Origin:
Guangdong, China
Plastic Type:
Thermoplastic
Automatic:
Semi-auto
Opening Stroke:
200mm
Certification:
ISO9001, CE
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Online support
Warranty:
1 year
Screw Diameter:
22/25/28mm
Theoretical Injection volume:
53cm3
Max. Injection Pressure:
248(2530)Mpa(kgf/ cm2 )
Injection Speed:
116(186)mm/s
Screw Rotation Speed:
0~300r.p.m
Nozzle Projecting Template Size:
more than 45mm
Min Mold Height:
150(200)mm
Max Daylight:
350(400)mm
Rotary Table Diameter:
780mm
Max Mold Size:
280*280mm
Injection Weight:
49(1.7)g(oz)
Injection Rate:
44cm3/s
Power(W):
7.5KW
Supply Ability
Supply Ability:
45 Unit/Units per Month for small round table injection molding machine
Packaging & Delivery
Packaging Details
1.Outer package: standard export wooden case
2. Inner package: stretch film
Port
Shenzhen, Guangzhou
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 30 To be negotiated

35 ton alibabab china  pvc small round table vertical plastic injection molding machine



Product Description



Specification for small round table injection molding machine
Model UnitV35R2
INJECTION UNITScrew Diametermm222528
Theoretical Injection volumecm35368.886
Injection Capacity(PS)g(oz)49(1.7)63.8(2.2)80(2.8)
Injection PressureMpa(kgf/ cm2 )248(2530)192(1960)153(1563)
Injection Ratecm3/s445771
Injection Speedmm/s116(186)
Screw Rotation Speedr.p.m0~300
Nozzle Projecting Template Size mmmore than 45
CALMPING UNITClamping Forcetf343(35)
Opening Strokemm200
Min Mold Heightmm150(200)
Max Daylightmm350(400)
Max. Mold Sizemm280×280
Rotary tablediameter mm780
Ejector Strokemm75
Ejector ForcekN(tf)26.5(2.7)
OTHERS System PressureMpa(kgf/ cm2 )13.7(140)
Oil Tank CapacityL200
Electric PowerkW(HP)7.5(10)
Heater PowerkW3.6
Machine Dimension /L×Wmm1865×1500
Machine Dimension/Hmm2270(1885)
Machine Weightton2.1



Drawings for machine and plate:



Application:

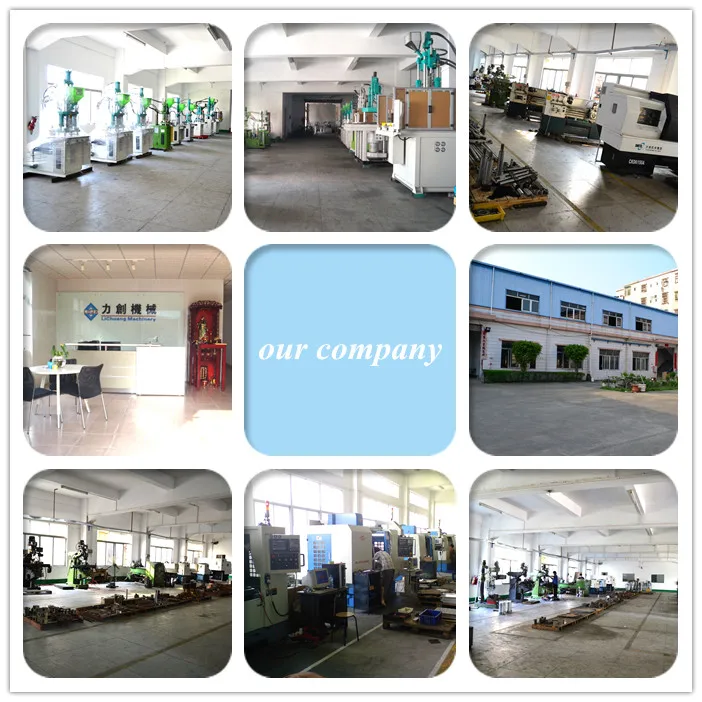

Company Information

Dongguan Lichuang Machinery Co., Ltd. , located in Qiaotou Town, Dongguan City, China, is a modern enterprise with integration of researching, developing, manufacturing and selling. Lichuang specializes in injection molding machine. Since its establishment, the range products has always been enlarged with the development of various plastic products, sophisticated requirements, growing market and upgrading injection molding machine equipment. Our main products include: vertical injection molding machines, horizontal injection molding machines, C-type injection molding machines, vertical single slide injection molding machines, vertical double slide injection molding machines, vertical rotary injection molding machines and so on. Integrity is our purpose and customers’ need is our guideline. We recommend the most suitable injection molding machine according to customers’ requirements to ensure the machine can be put into production immediately. At the time, the injection molding machine can be customized and redesigned by your special requirements.

Customer



Packaging & Shipping



FAQ

1. Q: Are you manufacturer or trading company?

    A: We are a manufactures for vertical injection molding machine and all machines are made by ourselves.



2. Q: I did not cooperate the machine before? How can I run it if I got the machines?

    A: We would like to offer you the training about how to install and operate the

 machine in our factory or your site. If you need, our engineer are available to your site.



3. Q: What if I do not know how to choose the machine to make my products ?

    A: Do not worry. Please let us know the product you want to make, the material to

make it, the production capacity you need, the mold size (if yes). We will advice you suitable machine according to your requirements.



4. Q: What's your guarantee or the warranty of the quality if we buy your machine

    A: We offer you high quality machines with high quality after-sale service.

 Also we have one year  warranty of the spare parts, free of charge.



5. Q:Can I be an agent in my market ?

    A: Welcome. We need talk details about the agent agreement .
